DIY Equipment Rack
Flexy Rack front view

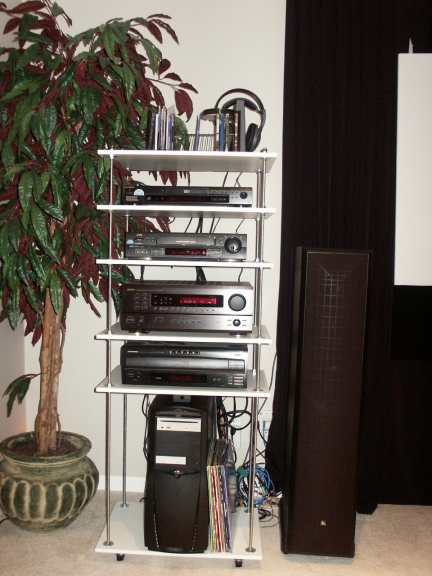

This is the completed equipment rack.  The design is a version of the popular "flexy" design, composed of shelves held in place by threaded rod and nuts.
Click on photos for a larger view.
Rack side detail

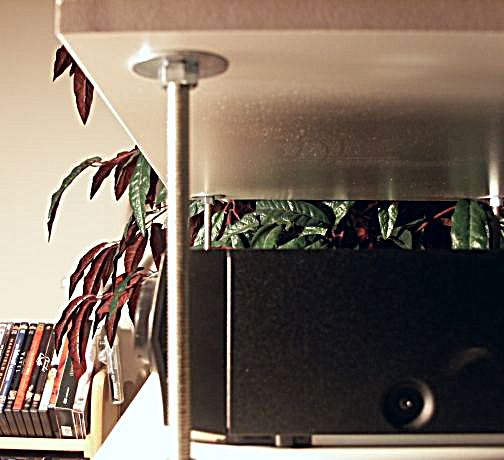

Side view showing how the shelves are assembled.  Threading all the nuts on took some time.  Don't forget the washers before you get the next nut started!  See below for a complete equipment list.

Each shelf is "sandwiched" between two nuts and two 1-1/2" fender washers.

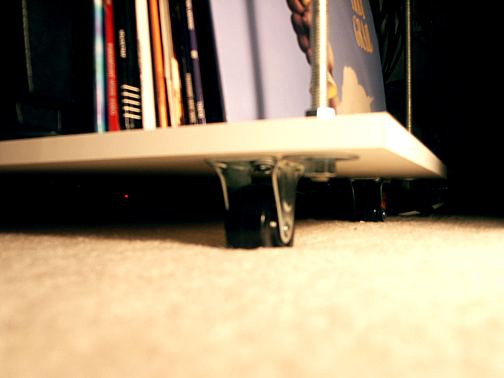

The bottom has wheels to allow the rack to pull out for rear access.

The 3/8" rod is really not rigid enough for a rack this tall, if I built it again I would use 1/2" or 5/8" dia. rod, and recommend anyone else to use the thicker rod also.  It would be much more rigid.  I think when they called these flexy racks they were referring to the flexibility of moving shelves, not the entire unit wiggling.

rack top detail
rack bottom detail

Home | Gallery | Equipment | Projects | FAQ | Links | Contact

Copyright © 2001-2002 C.M.Collins. All rights reserved.

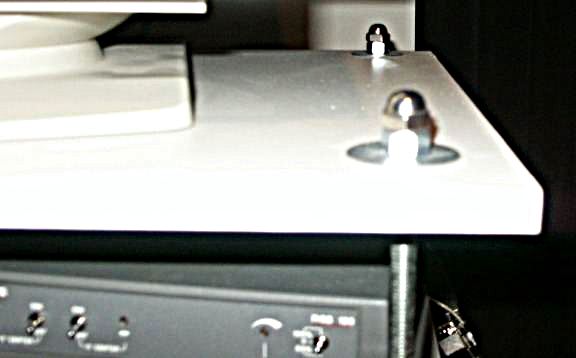

The top of the rods are hacksawed off and capped with 3/8" acorn nuts.
